HBOT YF-4001
YF-4001 Multi-Person Hyperbaric Chamber | Four-Person Hard-Shell Chamber for Commercial Wellness Centers
What pressure settings are available?
Pressure settings include six levels: 1.1, 1.3, 1.5, 1.6, 1.8 and 2.0 ATA; optional configurations can reach 2.5 ATA.
Elliptical/round chamber design
evenly distributes force and resists deformation under sustained high pressure
High-pressure protection
a password is required when the set pressure is ≥1.6 ATA to prevent accidental operation
Water-cooled air conditioning
the external HF-10 chiller is 220 V, 50 Hz and ≤1000 W; in-cabin equipment uses low-voltage 12 V or 24 V power.
Two-way internal/external intercom
in-chamber and external communication units
Ventilation and pressure regulation
the forced-air circulation system brings air in and exhausts it simultaneously to keep the chamber air fresh.
Customization
OEM/ODM support for chamber shell, floor, carpet, interior and seat colors
Product description
Layout and selection
Product type: Four-person seated hard-shell hyperbaric chamber
YF-4001 is a multi person hyperbaric chamber with four seats. Its hard-shell cabin measures 2500 × 1675 × 1800 mm (98.4 × 65.9 × 70.9 in). Check the seating arrangement and delivery access when planning shared wellness use.
Compare the cabin dimensions, seating or reclining layout, oxygen flow and pressure settings with your room plan. Allow space for the door opening, external equipment and routine access before confirming the installation position.
- Model
- YF-4001
- Capacity
- 4 people
Large Hyperbaric Chamber Technical Parameters
Technical parameters
- Model
- YF-4001
- Capacity
- 4 people
- Dimensions
- 2500 × 1675 × 1800 mm (98.4 × 65.9 × 70.9 in)
- Oxygen flow
- 40 L/min
- Oxygen concentration
- 93% +/- 3%
- Auxiliary equipment rated supply
- 220 V, 50 Hz
- What pressure settings are available?
- Pressure settings include six levels: 1.1, 1.3, 1.5, 1.6, 1.8 and 2.0 ATA; optional configurations can reach 2.5 ATA.
Product advantages
Multi-seat layout
This sitting hyperbaric chamber has four facing seats for shared use by families or small groups. Review the seating layout and entry space when planning the room.
Plan the seating layout around the number of occupants and the way they will enter and leave the cabin. Compare the internal arrangement with the door position and the available room space. Include access to the controls and observation areas when confirming the final configuration.
Core materials and safety
This hard shell hyperbaric chamber uses pressure-vessel-grade plate, PC doors and windows, automotive-grade interior materials and aluminium flooring. Confirm the final materials and equipment list for your project.
Review the shell, transparent components, interior surfaces and flooring together when choosing the final configuration. Colours and finishes should work with the room and the intended cabin layout. Confirm the selected materials and equipment list before production so the delivered configuration matches the project.
Main unit and air-conditioning system
The main unit and air-conditioning system support stable operation, temperature control and continuous air exchange with straightforward maintenance.
Reserve a position for the external equipment as well as the chamber itself. Check the power supply, connecting lines and ventilation space together, and keep the unit accessible for routine checks. Confirm the equipment arrangement before finalising the installation area.
Spacious cabin interior
The rounded cabin and open layout make entry, observation and mobility easier, including for multi-user or wheelchair scenarios.
Review the complete access route from the building entrance to the installation position. Doorways, turns and the space beside the cabin all affect daily access. Match these measurements with the model dimensions and the intended seating layout before choosing the final room position.
Project support
OxySail is a factory-direct hyperbaric oxygen chamber manufacturer in China, manufacturing and exporting since 2014 to over 70 countries. We offer OEM/ODM services and exclusive product development for distributors and brands, customizing exterior designs, interiors, seating and functions to suit each market. Our hard shell hyperbaric chamber range includes YF-1003, YF-1004 and two-person YF-2003 models for homes, clinics and wellness businesses. We provide factory-direct pricing, warranty support, and remote installation and operation guidance.
Project support
- Manufacturing and export since 2014
- Products supplied to more than 70 countries
- OEM/ODM and dedicated product development
- Factory-direct pricing and warranty support
- Remote installation and operating guidance
Application

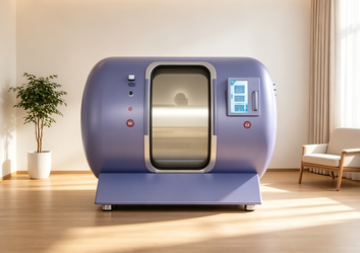

Explore YF-4001 in hospitality, fitness, residential and wellness settings.
Materials and safety design
Materials and chamber structure
- Door 25 mm PC | Panel material: PC board
- A reinforced door panel supports a stable seal and repeated daily access.
- Window 25 mm PC | Panel material: PC board
- The viewing panel balances visibility with the protection expected from the cabin enclosure.
- Door frame and interior structure Carbon steel
- Carbon steel is used for the door frame and interior structural components; it is not the pressure-bearing shell.
- Pressure-bearing shell 5 mm steel plate
- The chamber pressure shell is made from 5 mm steel plate.
Pressure monitoring
- Negative pressure gauge -100 to 0 kPa
- Identifies negative-pressure fault risk and alerts the operator to an abnormal state.
- Positive pressure gauge 0 to 250 kPa
- Monitors the chamber working pressure and supports the controlled pressurization and depressurization sequence.
Controls and equipment
Operating screens and two-way communication
- Inner screen
- The cabin display presents the key operating information inside the chamber.
- Outer screen
- The external panel keeps control information visible to the operator at the workstation.
- Inner call
- The cabin handset provides a direct voice channel for the occupant.
- Outer call
- The external handset lets the operator respond clearly without opening the chamber.
YF-4001 equipment and options
- Oxygen control system
- YF-40
- Oxygen flow
- Configurable by project — contact sales for the final flow specification
Seating or lying components depend on the selected model. Confirm the delivered equipment list for the project.
Exterior colors can be discussed by project. Confirm seating and oxygen-system options against the selected model.
Compare interior components and oxygen-system flow across the model range.
Details, customization and purchasing
Before purchasing
- Site dimensions and room layout
- Doorways, lifts and access route
- Power supply and equipment positioning
- Installation, commissioning and training
- Maintenance, consumables and after-sales response
Customization options
- Colour
- Bright white, matte black, gold silver, blue, metallic grey and more
- Seating and interior
- Materials, colours and space configuration
- Chamber and functions
- Exterior, interior, seating and functions
- Project delivery
- Production, assembly, packing, transport and installation
Contact Us
Tell us about this product and your project. Our team will follow up with the information you provide.
